概念
- NonZero（默认）：路径绕数非零则填充，重叠区域全部填满。
- EvenOdd：路径交叉奇数次则填充，重叠区域产生"镂空"。
- PaintOrder：默认先填充后描边；StrokeFirst 则先描边后填充（描边被填充覆盖一半）。
API 速查
| 常量 / 函数 | 说明 |
|---|---|
#define XGE_SHAPE_EX_FILL_NON_ZERO 0 | 非零绕数规则 |
#define XGE_SHAPE_EX_FILL_EVEN_ODD 1 | 奇偶规则 |
int xgeShapeExFillRule(xge_shape_ex pShape, int iRule) | 设置填充规则 |
int xgeShapeExFillRuleGet(xge_shape_ex pShape, int* pRule) | 获取填充规则 |
int xgeShapeExPaintOrder(xge_shape_ex pShape, int bStrokeFirst) | 设置绘制顺序 |
int xgeShapeExPaintOrderGet(xge_shape_ex pShape, int* pStrokeFirst) | 获取绘制顺序 |
编译本章示例
gcc -O2 -I. -o ch52.exe ch52_main.c build\xge.lib -lm -lws2_32 -liphlpapi -lgdi32 -luser32 -lshell32 -lopengl32 -lole32 -lwinmm -lavrt
.\ch52.exe示例 1：EvenOdd 镂空效果
xge_shape_ex shape = NULL;
xgeShapeExCreate(&shape);
// 外圆 + 内圆 → 同心圆环
xgeShapeExAppendCircle(shape, 400, 300, 150, 150, 1);
xgeShapeExAppendCircle(shape, 400, 300, 80, 80, 1);
// EvenOdd → 内圆区域镂空
xgeShapeExFillRule(shape, XGE_SHAPE_EX_FILL_EVEN_ODD);
xgeShapeExFillColor(shape, 0x4FD8C2FF);
xgeShapeExDraw(shape, 0.25f);示例 2：StrokeFirst 内描边
// 先描边后填充 → 描边外半被填充覆盖 → 视觉"内描边"
xgeShapeExStrokeColor(shape, 0xFFB454FF);
xgeShapeExStrokeWidth(shape, 8.0f);
xgeShapeExFillColor(shape, 0x1A1A2EFF);
xgeShapeExPaintOrder(shape, 1); // StrokeFirst
xgeShapeExDraw(shape, 0.25f);完整代码

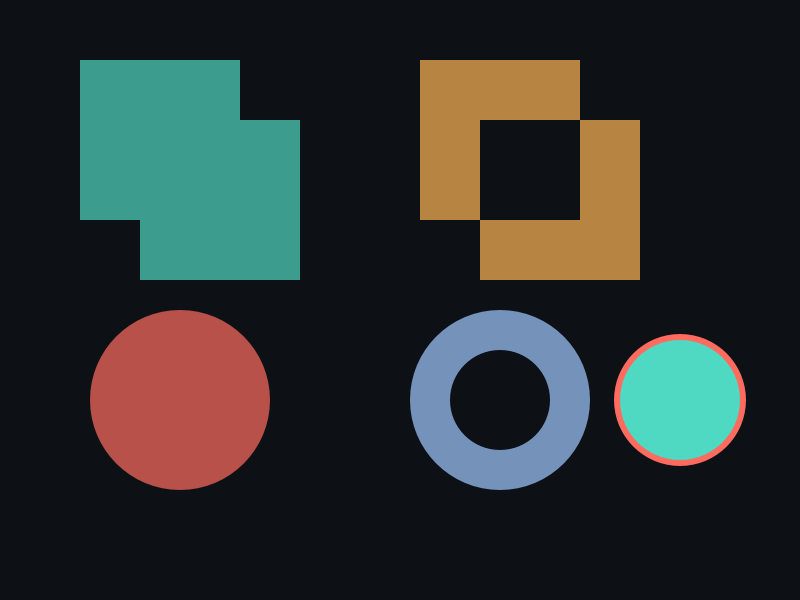

将以下代码保存为 ch52_main.c，编译后运行即可看到填充规则与绘制顺序效果：
#include "xge.h"
static int onFrame(void* pUser) {
(void)pUser;
xgeClear(0x081114FF);
// EvenOdd 镂空：同心圆环
xge_shape_ex ring = NULL;
xgeShapeExCreate(&ring);
xgeShapeExAppendCircle(ring, 200, 250, 130, 130, 1);
xgeShapeExAppendCircle(ring, 200, 250, 70, 70, 1);
xgeShapeExFillRule(ring, XGE_SHAPE_EX_FILL_EVEN_ODD);
xgeShapeExFillColor(ring, 0x4FD8C2FF);
xgeShapeExDraw(ring, 0.25f);
xgeShapeExDestroy(ring);
// NonZero 对比：同心圆不会镂空
xge_shape_ex disc = NULL;
xgeShapeExCreate(&disc);
xgeShapeExAppendCircle(disc, 600, 250, 130, 130, 1);
xgeShapeExAppendCircle(disc, 600, 250, 70, 70, 1);
xgeShapeExFillRule(disc, XGE_SHAPE_EX_FILL_NON_ZERO);
xgeShapeExFillColor(disc, 0xFFB454FF);
xgeShapeExDraw(disc, 0.25f);
xgeShapeExDestroy(disc);
// StrokeFirst 内描边效果
xge_shape_ex btn = NULL;
xgeShapeExCreate(&btn);
xgeShapeExAppendRect(btn, 200,440, 400,80, 12,12, 1);
xgeShapeExStrokeColor(btn, 0xFFB454FF);
xgeShapeExStrokeWidth(btn, 8.0f);
xgeShapeExFillColor(btn, 0x1A1A2EFF);
xgeShapeExPaintOrder(btn, 1);
xgeShapeExDraw(btn, 0.25f);
xgeShapeExDestroy(btn);
return XGE_OK;
}
int main(void) {
xge_desc_t d = {0};
d.iWidth = 800;
d.iHeight = 600;
d.sTitle = "ch52 - Fill Rule & Paint Order";
d.iFlags = XGE_INIT_VSYNC;
xgeInit(&d);
xgeRun(onFrame, NULL);
xgeUnit();
return 0;
}代码讲解
- EvenOdd：同心圆路径交叉次数为偶数的区域不填充，产生镂空效果。
- NonZero：同方向同心圆绕数不为零，全部填充（无镂空）。
- PaintOrder(1)：先描边后填充，填充覆盖描边外半，视觉上形成“内描边”。
- 默认顺序：PaintOrder(0) = 先 Fill 后 Stroke，描边在填充上方。
要点与陷阱
- 默认 NonZero：大多数简单图形两种规则效果相同。
- 镂空必须 EvenOdd：同心路径、自交路径产生孔洞。
- PaintOrder 默认 0：先 Fill 后 Stroke（描边在填充上方）。
- 内描边技巧：StrokeFirst + 不透明填充 = 只显示内半描边。
进阶练习
- 用 EvenOdd + 五角星路径实现镂空星形。
- 对比 NonZero / EvenOdd 对自交八字路径的不同填充结果。
