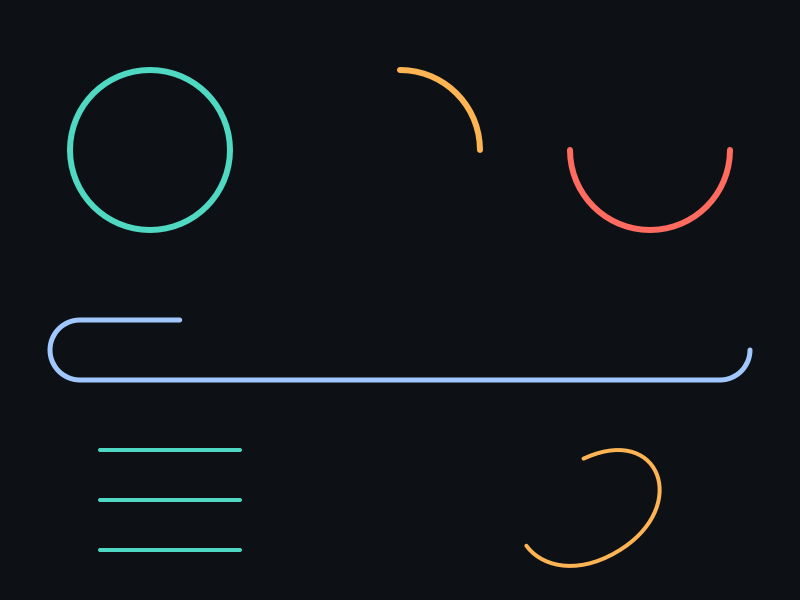

概念
- Begin / End：0.0 ~ 1.0 表示路径总长度的百分比区间。
- Simultaneous：1 = 所有子路径同时裁剪；0 = 按顺序依次裁剪。
- 典型用途：路径描边动画、进度环、手写效果。
API 速查
| 函数 | 说明 |
|---|---|
int xgeShapeExTrimPath(xge_shape_ex pShape, float fBegin, float fEnd, int bSimultaneous) | 设置 Trim 区间 |
int xgeShapeExTrimPathGet(xge_shape_ex pShape, float* pBegin, float* pEnd, int* pSimultaneous, int* pEnabled) | 获取 Trim 参数 |
int xgeShapeExTrimClear(xge_shape_ex pShape) | 清除 Trim（恢复完整路径） |
编译本章示例
gcc -O2 -I. -o ch51.exe ch51_main.c build\xge.lib -lm -lws2_32 -liphlpapi -lgdi32 -luser32 -lshell32 -lopengl32 -lole32 -lwinmm -lavrt
.\ch51.exe示例 1：路径描边动画
static float s_fProgress = 0.0f;
void OnFrame(void) {
s_fProgress += 0.005f;
if (s_fProgress > 1.0f) s_fProgress = 0.0f;
// 从 0% 到 progress% 绘制路径
xgeShapeExTrimPath(g_shape, 0.0f, s_fProgress, 1);
xgeShapeExDraw(g_shape, 0.25f);
}示例 2：进度环
xge_shape_ex ring = NULL;
xgeShapeExCreate(&ring);
xgeShapeExAppendCircle(ring, 400, 300, 150, 150, 1);
xgeShapeExStrokeColor(ring, 0x4FD8C2FF);
xgeShapeExStrokeWidth(ring, 10.0f);
xgeShapeExStrokeCap(ring, XGE_SHAPE_EX_CAP_ROUND);
// 显示 75% 进度
xgeShapeExTrimPath(ring, 0.0f, 0.75f, 1);
xgeShapeExDraw(ring, 0.25f);完整代码
将以下代码保存为 ch51_main.c，编译后运行即可看到 Trim Path 路径描边动画与进度环效果：
#include "xge.h"
static float s_fProgress = 0.0f;
static int onFrame(void* pUser) {
(void)pUser;
xgeClear(0x081114FF);
s_fProgress += 0.005f;
if (s_fProgress > 1.0f) s_fProgress = 0.0f;
// 心形路径描边动画
xge_shape_ex heart = NULL;
xgeShapeExCreate(&heart);
xgeShapeExMoveTo(heart, 400, 200);
xgeShapeExCubicTo(heart, 400,160, 340,100, 280,140);
xgeShapeExCubicTo(heart, 200,200, 280,320, 400,400);
xgeShapeExCubicTo(heart, 520,320, 600,200, 520,140);
xgeShapeExCubicTo(heart, 460,100, 400,160, 400,200);
xgeShapeExStrokeColor(heart, 0xFF6B8AFF);
xgeShapeExStrokeWidth(heart, 4.0f);
xgeShapeExStrokeCap(heart, XGE_SHAPE_EX_CAP_ROUND);
xgeShapeExTrimPath(heart, 0.0f, s_fProgress, 1);
xgeShapeExDraw(heart, 0.25f);
xgeShapeExDestroy(heart);
// 进度环：75%
xge_shape_ex ring = NULL;
xgeShapeExCreate(&ring);
xgeShapeExAppendCircle(ring, 400, 500, 60, 60, 1);
xgeShapeExStrokeColor(ring, 0x4FD8C2FF);
xgeShapeExStrokeWidth(ring, 8.0f);
xgeShapeExStrokeCap(ring, XGE_SHAPE_EX_CAP_ROUND);
xgeShapeExTrimPath(ring, 0.0f, 0.75f, 1);
xgeShapeExDraw(ring, 0.25f);
xgeShapeExDestroy(ring);
return XGE_OK;
}
int main(void) {
xge_desc_t d = {0};
d.iWidth = 800;
d.iHeight = 600;
d.sTitle = "ch51 - Trim Path";
d.iFlags = XGE_INIT_VSYNC;
xgeInit(&d);
xgeRun(onFrame, NULL);
xgeUnit();
return 0;
}代码讲解
- TrimPath(begin, end)：只绘制路径的 [begin, end] 比例区间，0~1 对应路径全长。
- 描边动画：每帧增加 progress，实现“手写”效果。
- 进度环：圆形路径 + Trim(0, 0.75) + Round Cap = 75% 进度指示器。
- Simultaneous=1：多子路径时每个子路径独立裁剪同一比例。
- TrimClear：清除 Trim 恢复绘制完整路径。
要点与陷阱
- Begin < End：Begin 必须小于 End，否则无绘制输出。
- 多子路径：Simultaneous=1 时每个子路径独立裁剪同一比例。
- 清除：TrimClear 后恢复绘制完整路径。
- 性能友好：Trim 不修改路径数据，仅影响绘制阶段。
进阶练习
- 实现"手写签名"动画：Bezier 路径 + 动态 Trim。
- 用 Begin/End 窗口滑动实现"彗星拖尾"效果。
